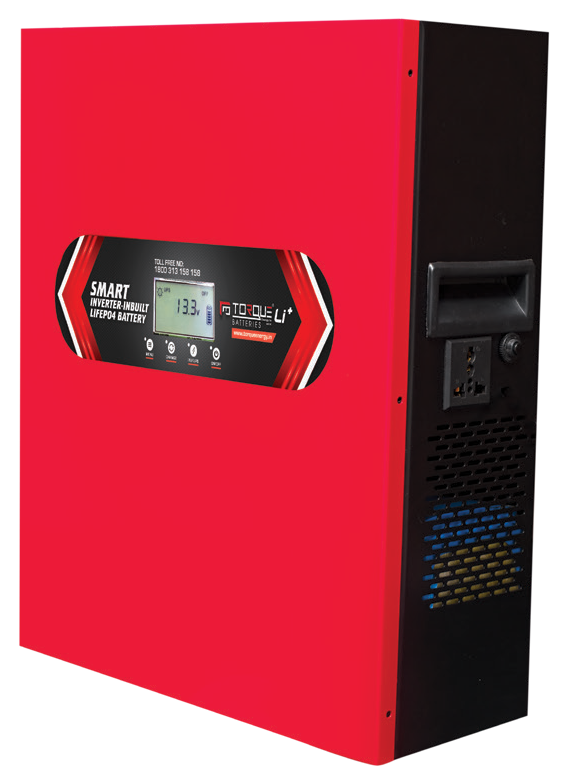

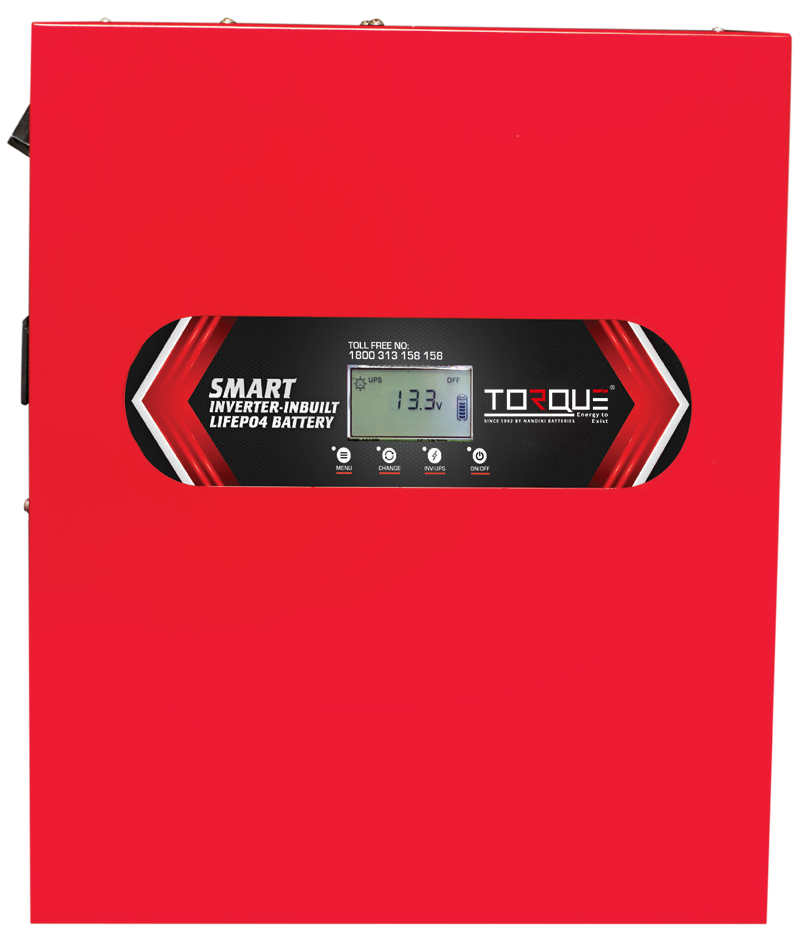

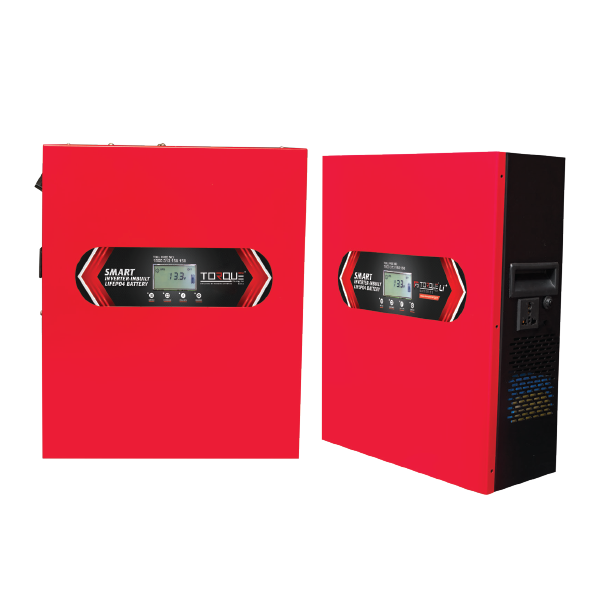

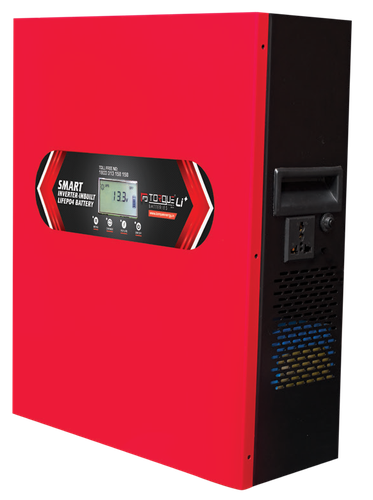

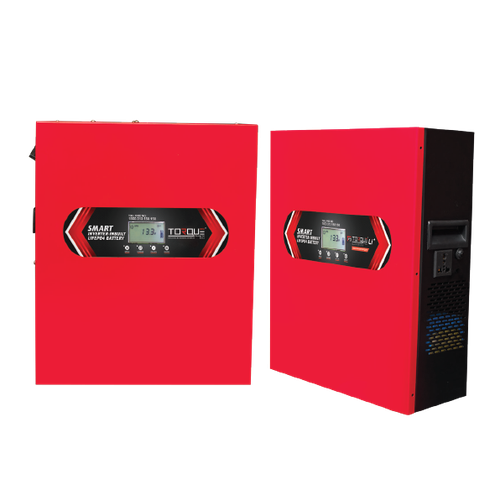

1KVA SMART Wall Mounted Inverter-Inbuilt Lithium Battery

(0)

* Wall Mountable.
* Pollution Free and Safe.
* 5 Years Warranty for Battery, 3 Years Warranty for Inverter.
* 10-15 Years Battery Life.
* Smart Home UPS.
* 3x Faster Charging.

M.R.P.:	₹ 34,800.00
Price:	₹ 34,000.00
You Save:	₹ 800.00 (2%)

In Stock

Add to cart

Buy Now

Add to Wishlist

Questions?

Email a friend

Description
Reviews

Specification Details

Parameter	Units	Rating
Model Name	-	TLI11280+
Nominal Voltage	V	12.8
Battery Capacity	Ah	100
Battery Power	Wh	1280
System Battery Voltage (DC)	V	12
Charging Cutoff	V	14
Discharging Cutoff	V	11.3
Charging Current	A @ 0.15C	15
Discharging Current Recommended	A @0.8 C	80
Charging Temperature	°C	10°C to 45°C
Discharging Temperature	°C	0°C to 60°C
Battery Weight	KG	22 ± 2
Battery Dimensions (LWH)	MM	442 * 365 * 158
100W Backup @90% DOD	Hr	12hr
400W Backup @90% DOD	Hr	3hr
Over Charge Protection	-	Yes
Over Discharge Protection	-	Yes
Short Circuit Protection	-	Yes
Charge & Discharge Port	-	Yes
Audible Noise	db	<50
Battery Chemistry		Lithium Ferro Phosphate
Charging Time		5–6 hrs
Backup Time at 400W		>3 hrs
Backup Time at 100W		>10 hrs
INPUT
Power Rating	VA	1000
DC Voltage	V	12.8
Voltage Range	Vac	170–270
Frequency	Hc	45–65
Full load DC Output Current	A	65
THD	%	>10% at 220VAC (input)
Input Power Factor	Lag	>0.9
Charger Topology		CONSTANT CURRENT/VOLTAGE
OUTPUT
Power Capacity	W	800
Voltage	Vac	220 ±7
Frequency	Hz	50
Power Factor	Lag	0.85
Voltage Harmonic		<5% (Linear Load)
Waveform		Pure Sine Wave
Transient Response		<8% (10%~90% Linear Load)
Low Battery Voltage		Smart Shutdown
Peak Efficiency of Inverter		82%
Crest Factor		3:01
Changeover time (UPS to mains, UPS mode)	ms	<10
Changeover time (UPS to mains, normal mode)	ms	<10
Changeover time (mains to UPS mode)	ms	<10
Changeover time (mains to normal mode)	ms	<40
Overload capacity (IT 125%)	Sec	6 sec (6 Auto Retry)
Overload capacity (IT 150%)	Sec	2 sec (6 Auto Retry)
Overload capacity (Normal 125%)	Sec	6 sec (6 Auto Retry)
Overload capacity (Normal 150%)	Sec	2 sec (6 Auto Retry)
Cooling Fan ON temp	°C	60 or >45% Load
Cooling Fan OFF temp	°C	55 or >40% Load
DISPLAY
LED Indication		UPS ON
Alarm Function		LED Indication Alarm Function LCD Parameter
LCD Parameter		Battery Voltage, Mains Voltage, UPS ON/OFF, UPS Mode, Load Percentage (0–150%), Overload, Short Circuit, Fault, Battery Low, Over Temperature, Fuse Trip (Customised LCD)
